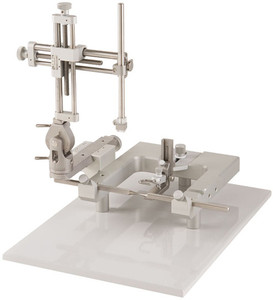

single arm stereotaxic instrument
Latest price:
$0.00
Quantity:
产品详情
material: stainless steel Brand: J&K Seiko

The Lab Standard Stereotaxic Instrument,   is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with small animals. Precision alignment when using the Lab Standard ensures accurate placement of electrodes, micropipettes, and other devices.

he time-proven U-Frame design concept, sturdy construction, and adaptability to most model species make this the best choice for a stereotaxic instrument.

_fairoot_ABUIABACGAAg89vmkwUozN7EnwUw9AM4pgQ

Easily Read Scales

All scales are oriented to be read easily from the open end of the U. This is the position from which most scientists prefer to work. The numerals on the scales are larger, and therefore more easily read. The scale lines are laser engraved, to allow finest possible permanent marking of scales on all 3 axes. Precise alignment with facing vernier scales gives accurate resolution to 0.1mm.

Smooth Movements
The Lab Standardsexclusive, triple lead screws allow the fastest positioning possible, consistent with lining up the scales easily at a given coordinate.

Versatility of Positioning
The manipulator arm controls medio-lateral and vertical positioning via lead screws, and antero-posterior movement via dovetail slide movement, with 80 mm of travel possible in each direction. A Universal Joint allows the investigator to change the angle of the probe up to 90o in either the antero-posterior or medio-lateral planes. The improved locking mechanism on the Lab Standardwill hold any angle position without slippage. And of course, it also provides anabsolute lock at 90o vertical.

In addition, a swing joint allows the investigator to conveniently swing the manipulator arm and probe out of the way for performing a procedure then reliably return the probe to the same point.

Convenient for Electrophysiology
Integral brass bushings in the manipulator arm allow grounding directly to the closest metal on the manipulator arm even the probe holder.

Selection of Accessories
Species adaptors are available to fit rat, cat/monkey, dog/monkey, mouse, guinea pig and small bird. Probe holders and species adaptors for Uframe stereotaxic instruments from other manufacturers are generally compatible with the Lab Standardframe.

Classic and Proven U-Frame Design for small animals

Features

Large, easy to read vernier scales Scales are laser engraved accurate to 100 microns

Triple lead screws for fast positioning 80 mm of vertical, lateral and anterior-posterior travel

Absolute lock at 90 degrees (vertical)

Versatile Positioning
The manipulator arm controls medial-lateral and ventral-dorsal using exclusive triple lead screws for faster positioning, and anterior-posterior movement via dovetail slide movement, with 80mm of travel possible in each direction. A universal joint allows the researcher to change the angle of the probe up to 90° in either the anterior-posterior or mediallateral planes. The improved locking mechanism on the Lab Standardwill hold any angle position without slipping. And of course, it also provides an absolute lock at 90° vertical.

Easily-Read Scales
All scales are oriented to be easily read from the open end of the U’ — the position from which most scientists prefer to work.

The scale numerals are large, and easy to read. The scale lines are laser engraved, to allow the finest possible permanent marking of scales on all 3 axes. Precise alignment with facing vernier scales gives accurate resolution to 100 microns.

Smooth, Consistent Movements
The Lab Standardsexclusive, triple-lead screws allow smooth consistent movements with the fastest positioning possible.

special ear bars,one side is Non-Puncture 45° Taper Ear Bars and one side is 18° Taper Ear Bars .



Quality  guarantee
feight fee in China
Price guarantee
JIT  delivery
Payment T/T  in  advance
Transfer SF express
UPS
Service training online
1 year guanrantee
